Engine: DA111, DL100, 3W100, DA85, MVVS58, 3W55, 3W50, EVO58
Mounting: 6 Hole
Hole circle: 29mm
weight: 101g
Drill : 5.1mm Includ

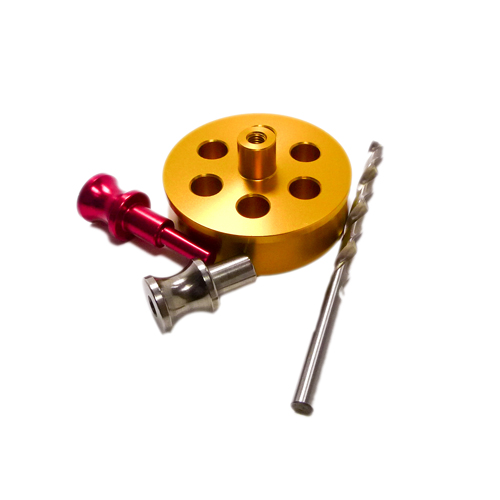

Material
jig(Gold): AL6061 (anodized)
Rotation prevention Pin(Red): AL6061 (anodized)
Drill Holders(Silver): SKD11 (heat treatment)

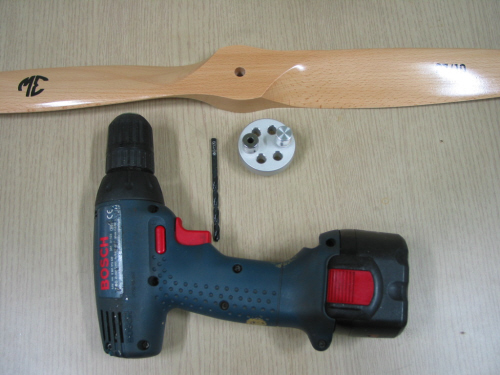

Prop drill jig for 6 bolt fixing comes with drill guide locking peg and drill bit.Hand held drill can be used as drill guide keeps drill straight no need for a pillar drill .
Instructions

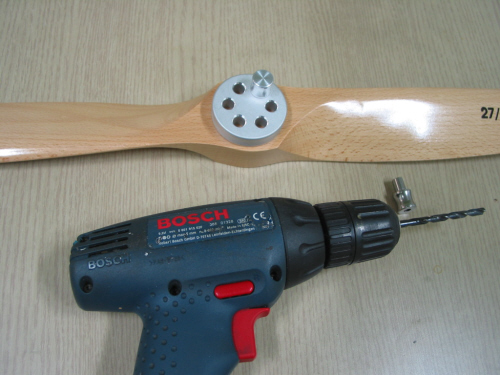

Step 1: insert jig into the hole to the propeller

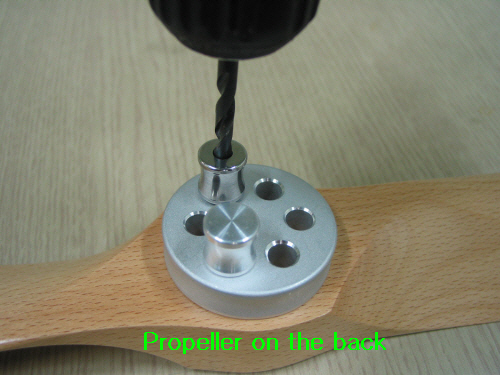

Step 2: After inserting jig, drill the first hole using the silver drill guide
Step 3: Place rotation prevention pin (red) into the drilled hole

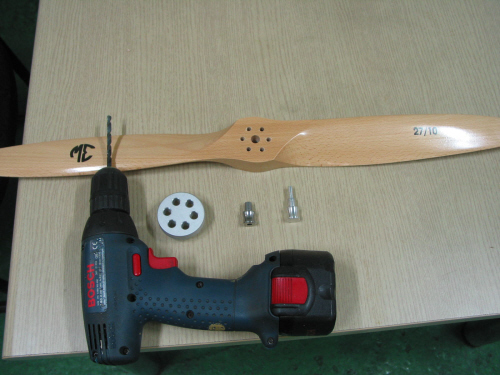

Step 4: Drill the remainder of the holes using the drill guide.
