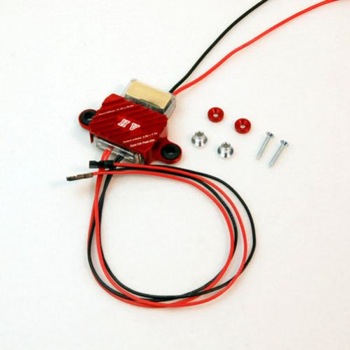

Hi Volt BEC
SE HV BEC is a BEC which is the best for using around 44.4V(12 Cells LiPo) high voltage. It is usually used connecting to battery for flight pack directly.
Specs:
Reg Type : Switching
Input Voltage Range : 11V ~ 75.6V (3~18 Cells)
Output voltage Range : 5.2V, 6.0V, 6.8V, 7.4V, 8.4V Selectable
Voltage ADJ : 4.8V~7.7V ADJ (Potentiometer)
Output currant(Peak) : 20A
Output currant(Cont) : 12A
Low voltage alarm setup : 10V~75V
On/Off Switch : Available
Size : 12mm(H) x 31mm(W) x 52mm(L)
Weight : 30g (Excluding Cables)
